Brand Name : Beyde
Model Number : 500/1+6+12+18+24
Certification : CE
Place of Origin : Hebei
MOQ : 1 set
Payment Terms : L/C, D/A, D/P, T/T
Supply Ability : 200 set/year
Delivery Time : 90 days
Packaging Details : Safety container packing
Usage : Stranding
Color : customized
Application : Cable Making Industry

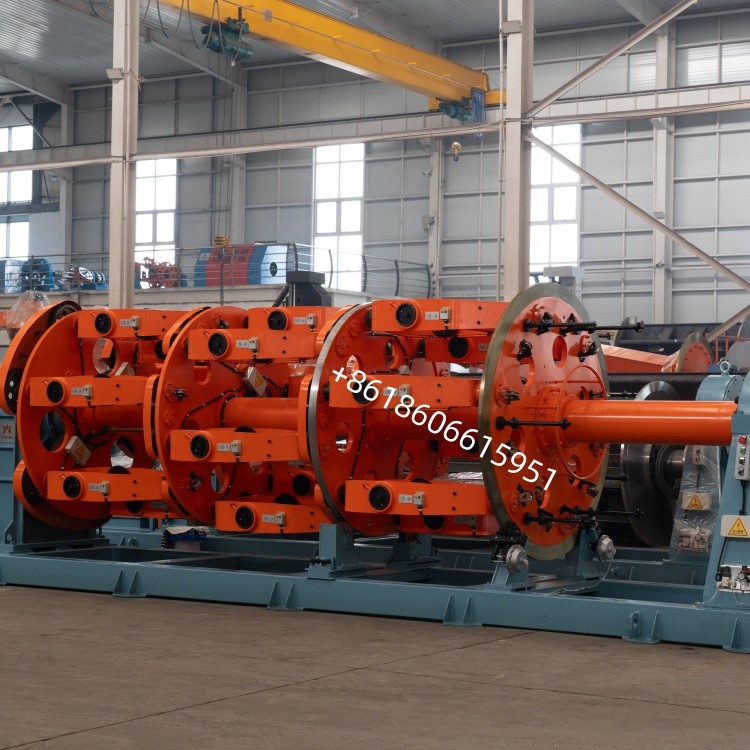

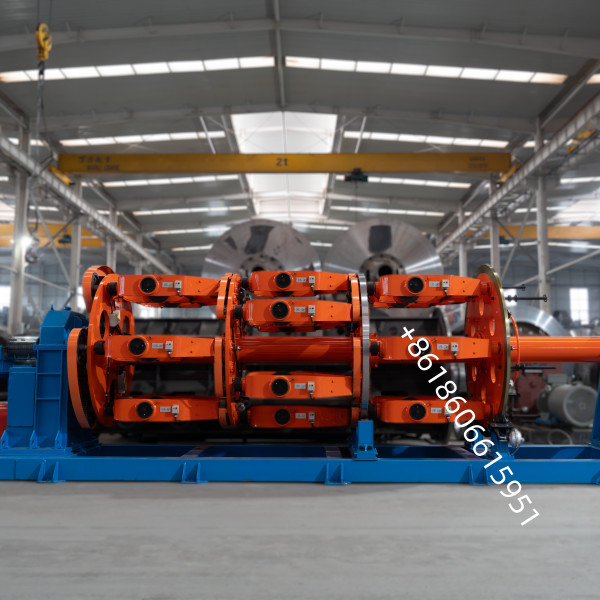

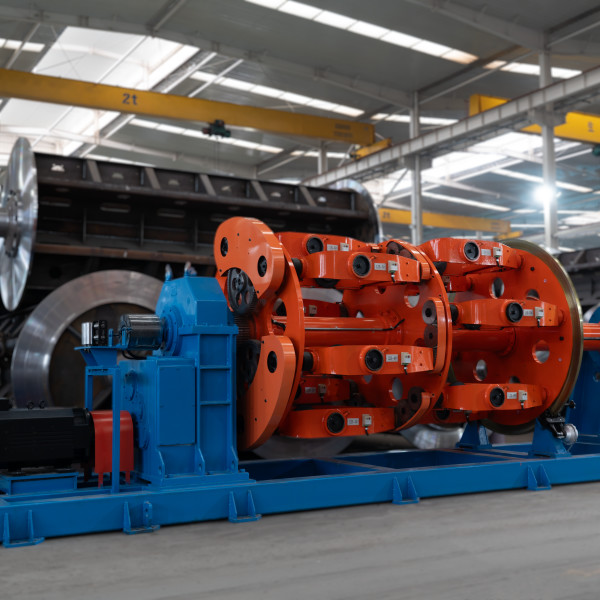

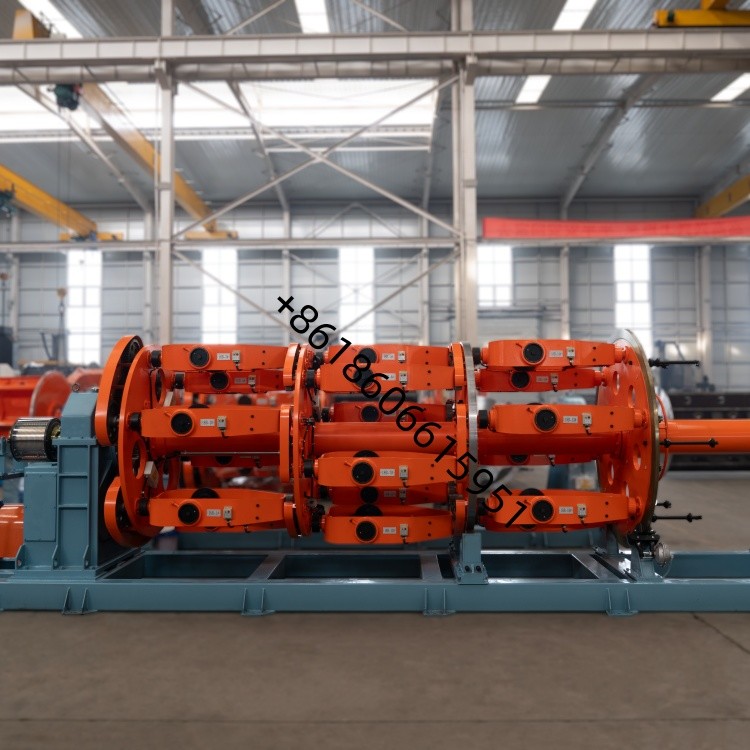

Name : Planetary stranding machine
Voltage : 380voltage or others
Wire material : copper or al,Steel Wire
Warranty : 12 Months
Function : control cable,power cable
Stranding pitch : Step-less
Taping head : 500
Plc : Siemens
Bearing : NSK/SKF
A planetary strander is a specialized machine used in the wire and cable industry to twist multiple wires or conductors into a compact, uniform helical structure. Unlike linear stranding machines, planetary stranders employ a rotational and orbital motion, where the stranding spindles rotate around a central axis while also spinning individually. This unique movement ensures precise layering and consistent lay length, making it ideal for producing high-quality cables with excellent electrical and mechanical properties.
Planetary stranders are widely used in:
The performance of a planetary strander depends on several critical parameters, which vary based on the application and production requirements. Below are the main specifications:
Parameter | Description | Typical Range |
---|---|---|
Number of Spindles | Determines how many wires can be stranded simultaneously (e.g., 4, 6, 12, 24 spindles). | 4 - 24 spindles |
Wire Capacity | Maximum wire diameter the machine can handle. | 0.05 mm - 6.0 mm |
Lay Length Adjustment | Controls the pitch (distance for one complete twist). | Adjustable (0.1 mm - 50 mm) |
Stranding Speed | Rotational speed of the planetary head (affects production rate). | 50 - 300 rpm (variable speed) |
Take-Up Capacity | Maximum cable diameter the machine can wind. | 50 mm - 500 mm (or more for large machines) |
Power Requirement | Motor power needed for operation. | 5 kW - 50 kW (depending on size) |
Tension Control System | Ensures uniform wire tension during stranding. | Automatic or manual tensioners |
Frame Material | Construction material for durability. | Steel or stainless steel (with anti-corrosion coating) |
Control System | CNC or PLC-based automation for precision. | Basic, semi-automatic, or fully automatic |
Based on application and automation level:
✅ Uniform Stranding – Ensures consistent wire distribution and lay length.
✅ High Efficiency – Faster production compared to linear stranders.
✅ Versatility – Can handle various wire sizes and configurations.
✅ Improved Cable Performance – Reduces electrical resistance and enhances mechanical strength.
✅ Automation Options – Reduces labor costs and human error.
A planetary strander is a vital machine in modern cable manufacturing, offering precision, efficiency, and versatility. By understanding its key parameters (spindle count, speed, tension control, etc.), manufacturers can select the right machine for their production needs. With advancements in automation and smart technology, planetary stranders continue to evolve, enabling higher-quality cables for diverse industries.
Would you like a detailed comparison of specific models or recommendations for your application?
![]() |
