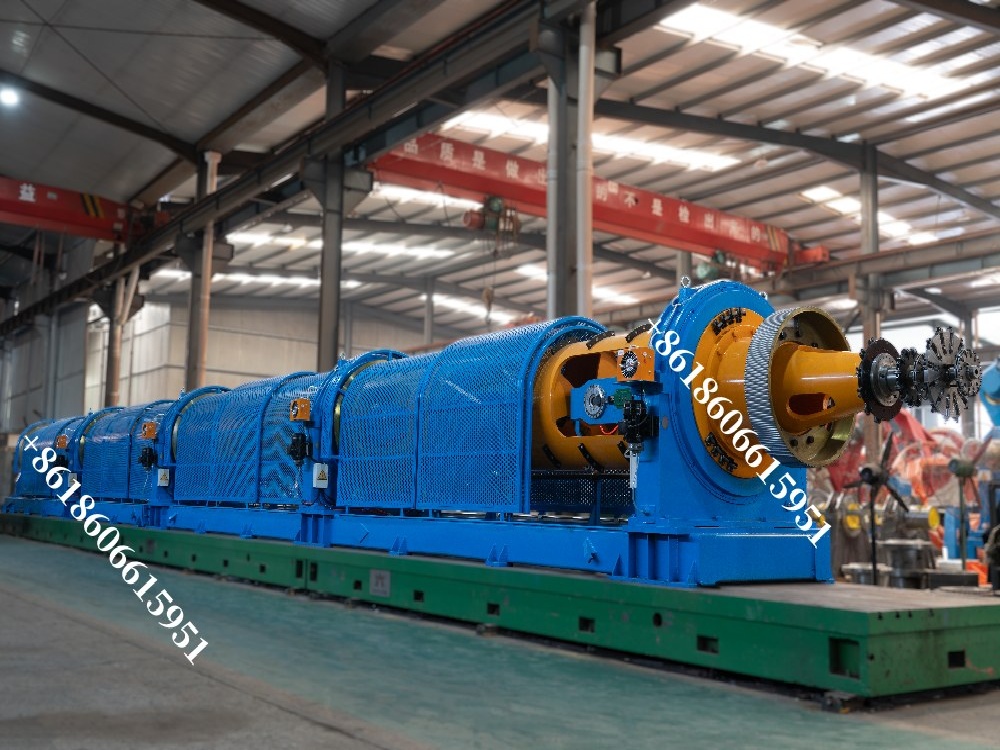

Energy Efficiency Tubular Stranding Machine for Cable Manufacturing JGG-500/1+6
Tubular Strander Parameters & Introduction
1. Introduction to Tubular Strander
A tubular strander is a specialized machine used in the wire and cable manufacturing industry to twist multiple wires or conductors into a compact, helical structure. Unlike planetary stranders, which use a rotational and orbital motion, tubular stranders employ a linear or rotational movement around a central axis, resulting in a tubular or layered stranding pattern. This method is ideal for producing cables with high flexibility, durability, and uniformity, making it suitable for a wide range of applications.
Tubular stranders are commonly used in the production of:
- Power cables (medium and high voltage)
- Control and instrumentation cables
- Communication cables (coaxial, twisted pair)
- Specialty cables (submarine, mining, aerospace)
2. Key Parameters of a Tubular Strander
The performance and capabilities of a tubular strander are determined by several critical parameters. These parameters influence the machine's efficiency, flexibility, and suitability for specific applications. Below are the key parameters:
| Single wire diameter | Ø 1.5mm- Ø 5.0mm for Cu Ф1.6mm- Ø 5.0mm for Al Ø 1.0mm- Ø 3.5mm for St |
| Through line hole diameter | Ø 20mm |
| Strand pitch range | 50-500mm (stepless adjustable on PLC) |
| Cage max rotation speed | 400r/min Working |
| Linear speed | 120m/min max |
| Capstan wheel diameter | Ø1400+ Ø1400mm |
| Pay-off bobbin size in cage | PND400-630 |
| Take-up bobbin size | PN1000-PN2000 |
| Center Pay-off bobbin size | PND500 |
| Main motor power | 75KW |
| Capstan motor power | 37KW |
| Take-up motor power | 5.5KW |
| Ø 630 center pay-off | 1 set |
| 12 bobbins strand cage | 1 set |
| Closing wire die holder | 1 set |
| Front side straightener | 1 set |
| Mechanic and digital Meter counter | 1 set |
| Ø 1400 Double wheel capstan device | 1 set |
| Ø 2000 Column type take-up and traverse | 1 set |
| Electrical control system | 1 set |
| Safety protection cover | 1 set |
3. Types of Tubular Stranders
Based on application and automation level, tubular stranders can be categorized into:
-
Manual Tubular Strander
- Basic model with manual adjustments.
- Suitable for small-scale production or prototyping.
-
Semi-Automatic Tubular Strander
- Features programmable lay length and speed but requires operator supervision.
- Ideal for medium-scale production.
-
Fully Automatic Tubular Strander
- CNC-controlled with real-time monitoring and advanced tension control.
- Best for high-volume production with consistent quality.
-
High-Speed Tubular Strander
- Optimized for rapid production with advanced cooling and tension systems.
- Suitable for large-scale industrial applications.
-
Compact Tubular Strander
- Space-saving design for small workshops or limited production spaces.
4. Advantages of Tubular Stranders
✅ Uniform Stranding: Ensures consistent wire distribution and lay length, improving cable performance.
✅ High Efficiency: Faster production rates compared to manual methods.
✅ Versatility: Can handle various wire sizes and configurations.
✅ Improved Cable Flexibility: Produces cables with high flexibility, ideal for dynamic applications.
✅ Durability: Enhanced mechanical strength due to precise stranding.
✅ Automation Options: Reduces labor costs and human error in fully automatic models.
5. Applications of Tubular Stranders
- Power Transmission: Medium and high-voltage power cables.
- Control & Instrumentation: Precision cables for industrial automation.
- Communication: Coaxial and twisted-pair cables for data transmission.
- Specialty Cables: Submarine, mining, and aerospace cables requiring high durability and flexibility.
- Automotive Wiring: Harnesses and battery cables for vehicles.
6. Future Trends in Tubular Stranders
Product Tags:
|
|

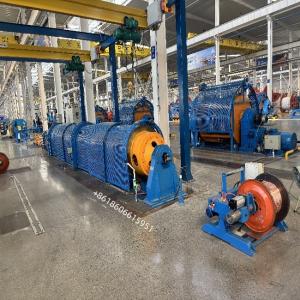

Energy Efficiency Tubular Stranding Machine for Cable Manufacturing JGG-500/1+6 Images
|
